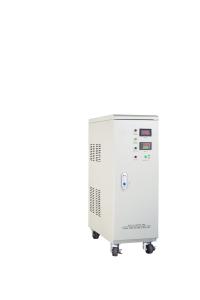

Digital LED Automatic Voltage Stabilizer 20KVA 100V 260V AC 220V

Name: Digital LED Automatic Voltage Stabilizer 20KVA 100V 260V AC 220V
Brand: Modern
Price: 1 USD

Wholesale Digital LED Automatic Voltage Stabilizer 20KVA 100V 260V AC 220V from china suppliers

Brand Name : Modern

Model Number : DBW

Certification : CE,ISO 9001

Place of Origin : China

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 500 unit/month

Delivery Time : 30 days

Packaging Details : Wooden Packing

Dimension : 260×785×500mm

Capacity : 20KVA

Votage Stability Range : -3%~+3%

Weight : 72Kg

Phase : single phase

Contact Now

Digital LED Automatic Voltage Stabilizer 20KVA 100V 260V AC 220V

Description:

DBW series compensation voltage stabilizer is highly beneficial when the electricity supply to the site is at a higher or lower voltage level than needed. This system stabilizes the input voltage to be stable and generates a reliable output voltage to the residential, commercial, industrial site. Therefore, it can achieve energy saving and electricity bill reduction by decreasing power consumption.

Voltage Regulator Feature:

1.This series large power voltage stabilizer is an energy-saving new product developed by our company by absorbing the advanced technology of Western Europe.
2.It is provided with two systems of manual/automatic dual control,direct output and stabilizing output, with the functions of over/under-voltage protection,delay and error protection etc, it is reliable and suitable forany load.

Applications:

BROADCAST: Regulation for broadcast transmitter sites and studios.
COMMERCIAL: High- rise building, elevator control, large A/C chillers, lighting, and other sensitive critical systems.
INDUSTRIAL: Industrial automation, process control, CNC, factory robotics, heavy load machinery.
MEDICAL: X- ray, CT scanner, MRI system,Radiation therapy machine,other medical imaging equipments.
TELECOM: Mobile base stations, exchanges stations, control centers and transmission relay stations, .

Technical parameter

Input Voltage	DBW
Input Voltage	220±15%,20%,30%,50%
Output Voltage (Preset at 1.5%)	220Vac±1-5%
Efficiency	>98%
Precision	1-5%
Frequency	47-53Hz
Response Time	<0.5S/20V(Line Voltage)
Insulated Strength	2000V/1 minute without puncture
Insulated Resistance	>2MΩ
Wave Deformation	Nil
Isolation transformer	Optional
Surge Protection	Optional

Model	Dimension(W×D×H)mm	Model	Dimension(W×D×H)mm
DBW-10KVA	300×720×1270	DBW-50KVA	300×800×1370
DBW-20KVA	300×720×1270	DBW-80KVA	300×800×1370
DBW-30KVA	300×720×1270	DBW-100KVA	300×800×1370
SBW-15KVA	300×720×1270	SBW-350KVA	500×1050×1800
SBW-20KVA	300×720×1270	SBW-400KVA	500×1050×1800
SBW-30KVA	300×720×1270	SBW-500KVA	600×1250×2000
SBW-50KVA	300×800×1370	SBW-600KVA	600×1250×2000
SBW-80KVA	300×800×1370	SBW-800KVA	600×1250×2000
SBW-100KVA	300×800×1370	SBW-1000KVA	800×1800×1900
SBW-120KVA	300×800×1370	SBW-1200KVA	1000×1800×1900
SBW-150KVA	400×900×1600	SBW-1500KVA	1000×1800×1900
SBW-180KVA	400×900×1600	SBW-2000KVA	1000×1800×1900 two cabinets
SBW-200KVA	400×900×1600	SBW-3000KVA	1000×1800×1900 two cabinets
SBW-250KVA	500×1050×1800	SBW-4000KVA	1000×1800×1900 three cabinets
SBW-300KVA	500×1050×1800	SBW-5000KVA	1000×1800×1900 four cabinets
